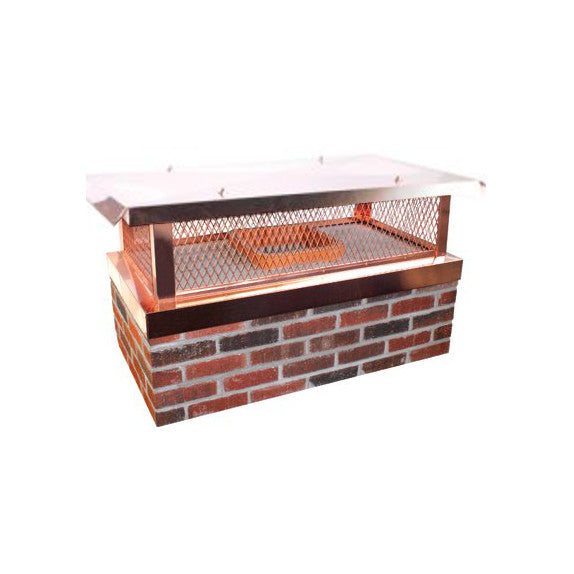

Copper Outside Mount Chimney Cap for Multi-Flue with Basic Lid
Our Copper Outside Mount Chimney Cap with Basic Lid is custom-crafted per order for a perfect fit. Designed with both functionality and durability in mind, it features a 2″ overhang, 3/4″ mesh, a 3″ vertical skirt, a 2″ horizontal skirt, corner reinforcements, and a removable lid, the screen height/mesh height is available in 8, 10, 14, 12 and 16 inch or customized to any other heights.
Description
Product Details
The Copper Outside Mount Chimney Cap with Basic Lid is an essential, reliable chimney protection solution. This proven design ensures the top and interior of your chimney remain dry, safeguarding against the elements. Its outside mount structure allows it to fit snugly over the chimney, and installation is a breeze with the included silicone and masonry screws.
The cap features a 2″ horizontal skirt that provides support, resting on the outside edge of the chimney. The 3″ vertical skirt extends downward along the chimney sides, securing the cap in place. Additionally, the vertical skirt includes a drip edge that diverts rainwater, preventing it from running directly down the chimney walls.
For added convenience, the lid of the Copper Outside Mount Chimney Cap is removable, secured with locking nuts. This allows for easy access to the chimney flues, making cleaning and maintenance simple. The cap also boasts a 2″ lid overhang extending over the 3/4″ mesh screen.
Installation Instructions
Installing the Copper Outside Mount Chimney Cap is straightforward with its 3″ vertical skirt. Simply apply a bead of silicone to the inner skirt panel and slide the cap over the chimney. Use a drill to pre-drill pilot holes through the skirt and into the chimney, and then secure the cap with masonry screws and silicone. Depending on the cap size, we recommend placing 2-3 masonry screws evenly spaced along the cap’s sides, typically 18 to 24 inches apart.
Your provided measurements will ensure the cap is fabricated to fit perfectly. The removable lid allows easy access for cleaning and maintenance, and the 2″ lid overhang ensures complete coverage.
Why Choose Our Copper Outside Mount Chimney Cap
Our Copper Outside Mount Chimney Cap is an exceptional choice for those seeking lasting protection and value. Copper provides a luxurious finish that not only protects your chimney but enhances your home’s curb appeal. This cap will last a lifetime, never rusting, and offers unparalleled protection.
By preventing critters, rain, snow, and debris from entering your chimney, this cap helps prevent long-term damage and deterioration. Constructed from durable 16-ounce copper, it’s built to withstand the test of time. Backed by a lifetime warranty against rust or defects, this cap is proudly made in the USA, ensuring superior craftsmanship and durability.
Over time, the copper will develop a beautiful patina, adding character and charm to your chimney.
Measuring Tips
Measuring for Your Copper Outside Mount Chimney Cap
To ensure your chimney cap fits perfectly, follow these simple measuring guidelines. Provide us with your chimney’s exact measurements, and we will fabricate the cap accordingly.
Key Measuring Tips:
- Add at least 1/4″ to both the length and width measurements to ensure a snug fit and proper coverage over the outer bricks.
- The screen height should be a minimum of 6″ taller than the tallest flue. For example, if the tallest flue is 6″, the screen height should be at least 12″.
Note: Copper multi-flue caps are made custom per order, so they are non-returnable. Fabrication takes 2-3 weeks, and soon your chimney will be fully protected.
Things to Measure for Your Copper Outside Mount Chimney Cap:
- Overall length of the chimney (add 1/4″ to the exact measurement)
- Overall width of the chimney (add 1/4″ to the exact measurement)
- Screen height (at least 6″ higher than the tallest flue)
Specifications & Features
- 100% Real Copper
- 2″ Lid Overhang
- 3/4″ Mesh
- 3″ Vertical Skirt
- 2″ Horizontal Skirt
- Corner Reinforcements Included
- Removable Lid for Easy Access and Maintenance
- The hip and ridge, or standing seam caps, are designed for a 6/12 pitch but can be adjusted to fit any roof pitch.
