Copper Top Mount Chimney Cap | Multi-Flue with Basic Lid
Our Copper Top Mount Multi-Flue Chimney Caps with a Basic Lid are custom-made to ensure a precise fit for your chimney. Designed with a 2″ overhang, 3/4″ mesh, and corner reinforcements, these caps also include user-friendly Base Mounting Flanges for easy installation. The removable lid provides convenient access for maintenance. The screen height/mesh height is available in 8, 10, 14, 12 and 16 inch or customized to any other heights.
Description
The Copper Multi-Flue Cap with Basic Lid offers top-notch protection and an elegant look for your chimney. Crafted from 16 oz. copper, this cap is built to withstand the elements while keeping your chimney safe from rain, snow, animals, and debris. It also helps prevent chimney deterioration over time.
Designed for easy installation, this cap features a top mount or outside mount option with a hinged mounting flange. It securely attaches to the chimney crown or brick using chimney adhesive and masonry screws, both of which are included.
The removable lid allows for simple access to your chimney flues, making maintenance hassle-free. The cap includes a 2″ overhang on all sides of the 3/4″ mesh screen for enhanced protection.
Installation
Installing the copper top mount chimney cap is straightforward thanks to its 1.5″ wide stainless steel hinged mounting flange. This versatile flange allows you to easily install the cap and provides flexibility. The hinge lets you position the flange either inside or outside of the mesh screen, depending on your preference.
Installation Steps:
- Position the chimney cap at the center of your chimney crown.
- Mark the hole positions on the base of the cap, typically requiring 4 – 8 screws for an average-sized cap.
- Lift the mounting flange and apply a bead of silicone to the underside.
- Press the flange firmly into the silicone, ensuring a tight seal.
- Drill holes at the marked locations and insert masonry screws into the crown to secure the cap.
Customized Fit: For a perfect fit, provide your specific mesh screen measurements. We will fabricate the screen according to these dimensions to ensure an accurate installation.
Why Opt for Our Copper Top Mount Chimney Cap
Choose our copper top mount chimney cap for exceptional durability and protection. Crafted from premium 16-ounce copper, these caps are built to withstand the elements and offer a lifetime of service. Backed by a lifetime warranty and proudly made in the USA, our copper chimney caps are an investment in quality craftsmanship.
Enhance the look of your chimney with the timeless beauty of real copper. As the cap ages, it develops a natural patina that adds to its character and charm, boosting your home’s curb appeal.
Measuring for the Perfect Fit
To ensure your chimney cap fits seamlessly, follow these measurement guidelines. When you provide your measurements, we will fabricate the mesh screen to those exact dimensions.
Key Tips:
- The mesh screen height should be at least 6″ higher than the tallest flue to ensure proper ventilation.
- For outside mount installations, we recommend adding at least 1/4″ to both the length and width measurements for a snug, secure fit.
Please note that copper multi-flue caps are made custom per order, so they are non-returnable. The fabrication process takes approximately 2-3 weeks, ensuring your chimney is protected in no time.
What You’ll Need to Measure:
- Overall length for the mesh screen
- Overall width for the mesh screen
- Screen height (at least 6″ higher than the tallest flue)

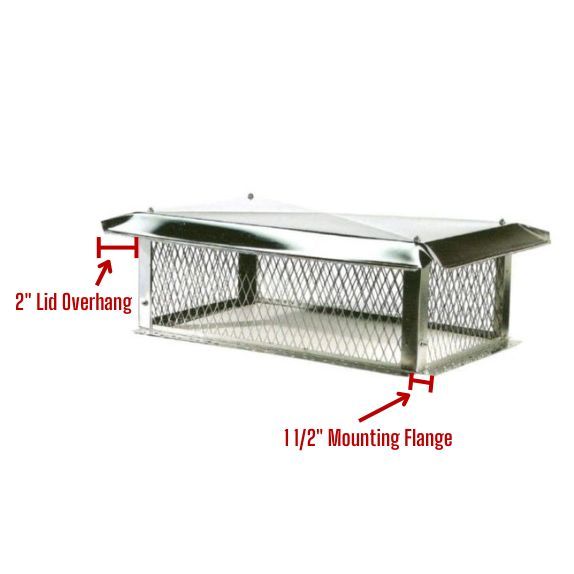

Specifications & Features
- 100% Real Copper
- 2″ Lid Overhang
- 3/4″ Mesh
- Corner Reinforcements Included
- Easy-to-Install Base Mounting Flanges
- Removable Lid for Convenient Maintenance
- The hip and ridge, or standing seam caps, are designed for a 6/12 pitch but can be adjusted to fit any roof pitch.
