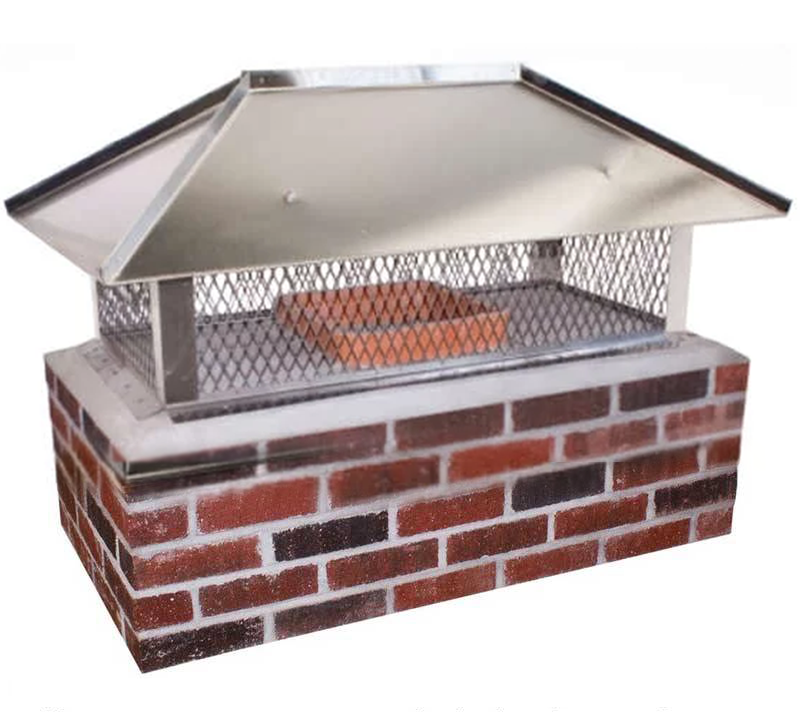

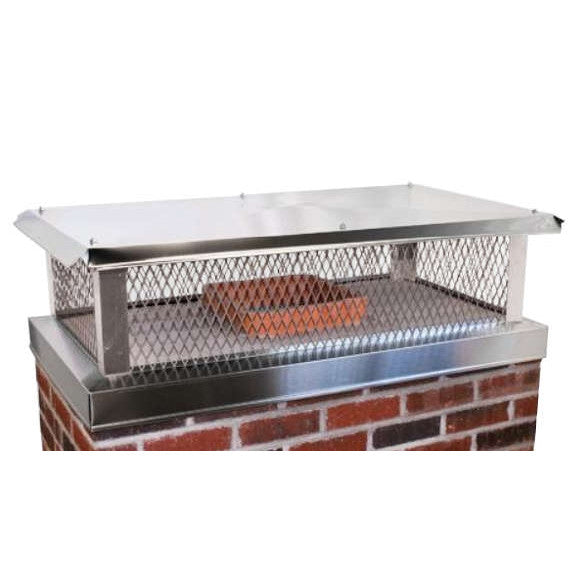

Stainless Steel Chimney Cap | Outside Mount with Basic Lid for Multi-Flue
Our Outside Mount Multi-Flue Chimney Cap is custom-crafted to ensure a perfect fit. Designed with a 2″ overhang, 3/4″ mesh, 3″ vertical skirt, 2″ horizontal skirt, removable lid, and drip edges, this cap provides both exceptional protection and ease of use. The screen height/mesh height is available in 8, 10, 14, 12 and 16 inch or customized to any other heights.
Description
Product Details
The Outside Mount Multi-Flue Chimney Cap with Basic Lid is a reliable, durable stainless steel chimney cap that has been proven to keep your chimney dry and secure. This cap is designed for easy installation and fits securely over your chimney. It can be easily mounted with silicone and masonry screws (which are included).
The cap features a 2″ horizontal skirt, which provides a ledge for the cap to rest securely on the outer edge of the chimney. The 3″ vertical skirt extends down each side of the chimney, allowing for secure attachment. The vertical skirt is equipped with a drip edge to help direct rainwater away from the sides of the chimney, preventing water damage.
The lid of the Outside Mount Multi-Flue Chimney Cap is removable, secured with locking nuts. This allows for easy access when cleaning or maintaining the chimney flues. Additionally, the cap’s lid has a 2″ overhang from the mesh screen, further enhancing its protective function.
Additional information
| Powder Coating | Black, Bronze, Brown, Copper, Green, Grey, Ivory, Tan |
|---|
Installation
Installing the Outside Mount Stainless Steel Chimney Cap is straightforward. With a 3″ vertical skirt, the cap can be easily installed around the exterior perimeter of the brick chimney. Start by applying a bead of silicone on the inner skirt panel and slide the cap over the chimney. Pre-drill pilot holes through the skirt panel and into the chimney, then secure the cap using masonry screws and silicone. It is recommended to place 2-3 screws evenly spaced along the sides of the cap for secure attachment, with spacing typically 18 to 24 inches between screws.
For a precise fit, provide the exact measurements of your chimney. We will fabricate the cap based on these measurements, ensuring a custom solution. The removable lid makes access for cleaning and maintenance simple, while the 2″ lid overhang ensures additional protection.
Why Choose Our Stainless Steel Chimney Cap?
Our Outside Mount Multi-Flue Cap is made from premium 304 stainless steel, providing exceptional durability and resistance to rust and corrosion. This chimney cap is designed to protect your chimney from critters, rain, snow, and debris, preventing costly chimney deterioration. It comes with a lifetime warranty against defects and rust, guaranteeing peace of mind for years to come. Proudly made in the USA, our chimney caps offer superior craftsmanship and long-lasting quality.

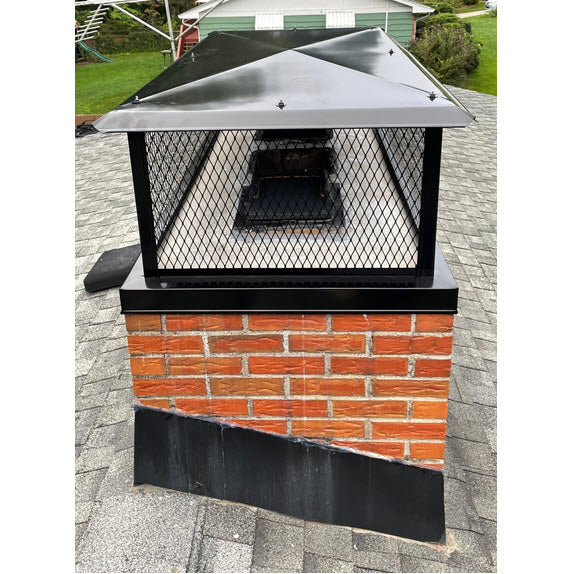

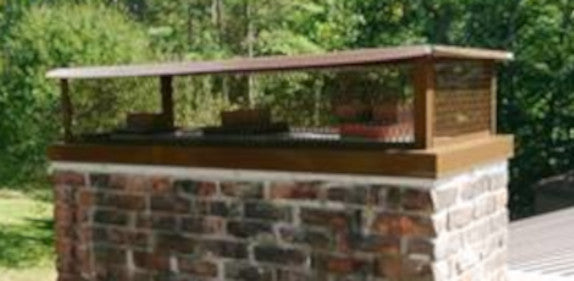

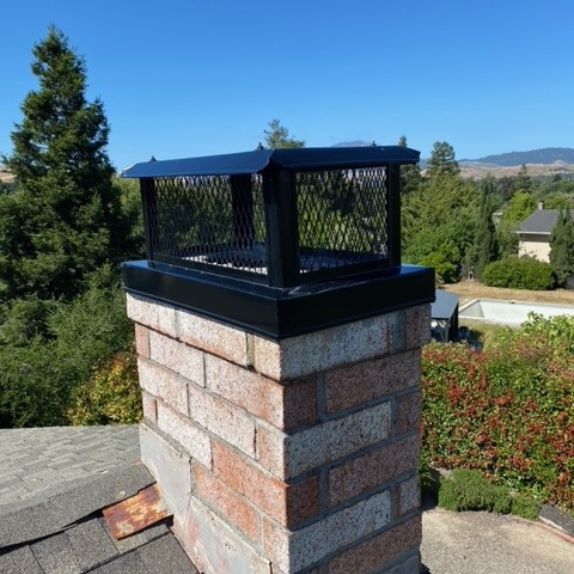

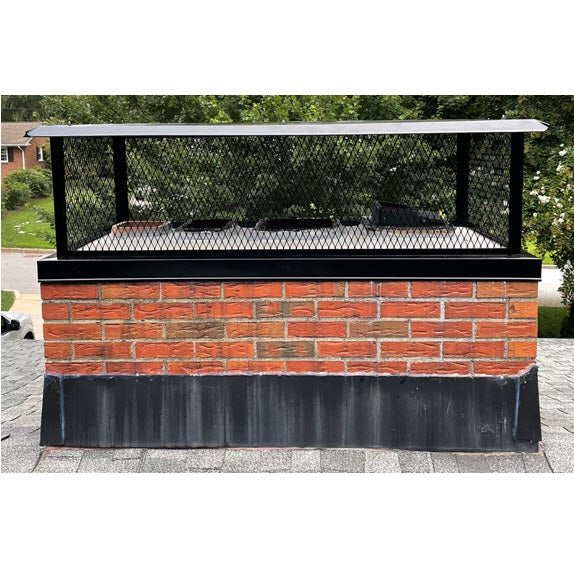

Enhance the appearance of your chimney cap by opting for a powder coating finish. Various color options are available to suit your preferences and add curb appeal to your home.
Measuring for Your Stainless Steel Chimney Cap: To ensure a perfect fit, follow these measurement guidelines:
- Overall Length of Chimney: Add at least 1/4″ to the exact length measurement.
- Overall Width of Chimney: Add at least 1/4″ to the exact width measurement.
- Screen Height: The screen height should be at least 6″ taller than the tallest flue tile for proper ventilation and protection.
For instance, if the tallest flue tile measures 6″, the screen height should be at least 12″ to ensure proper coverage.
Note: Stainless Steel Knock-Down Multi-Flue Caps are custom-made per order and are non-returnable. The fabrication process takes approximately 2-3 weeks, with an additional week for powder coating if selected. Your chimney protection solution is just a few weeks away.
Specifications
- 2″ Lid Overhang: For enhanced protection.
- 3/4″ Mesh: To prevent debris and critters from entering.
- 3″ Vertical Skirt: For secure attachment to chimney walls.
- 2″ Horizontal Skirt: Provides support on the outer edge of the chimney.
- Corner Reinforcement Braces: Adds structural integrity.
- Self-Locking Serrated Flange Nuts: Secure lid attachment.
- Removable Lid: For easy cleaning and maintenance.
- Drip Edges: Helps divert water away from the chimney.
- 24 Gauge Stainless Steel: Durable and corrosion-resistant.
- Powder Coating Option: Available in 9 colors (see color swatch above).
- The hip and ridge, or standing seam caps, are designed for a 6/12 pitch but can be adjusted to fit any roof pitch.
